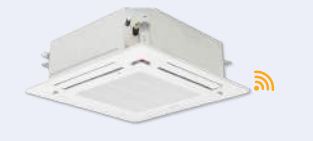

Panasonic Cassette AC 4 Ton 1 Star Fixed Speed

Panasonic Cassette AC 4 Ton 1 Star Fixed Speed

SPECIFICATIONS:
Model
Indoor Unit  S-48PUB5H59B
Outdoor Unit  U-48PNB5H89
Panel CZ-KPUB5H9

Tonnage Class  4.0 TR
Capacity
Cooling Standard  Btu/h 46507  W 13630
ISEER   3.05

Star Rating  1 Star
Power Input Cooling Standard   W 4468

Running Current Cooling Standard A 9.0
Power Supply  V /  / Hz  415V / 3 / 50Hz

Indoor Unit :
Air Volume Flow Rate  H/M/L  CMH 2250/2100/2000
Sound Pressure Level* H/M/L dB(A) 54/52/51
Dimension:
Indoor (L x B x H) cm 84.5 x 84.5 x 29.0
Panel (L x B x H)  cm  95.0 x 95.0 x 4.2
Net Weight Indoor  kg 26.2
Net Weight Panel  kg 5.5
Outdoor Unit :
Compressor Type  Twin Rotary
Sound Pressure Level  High  dB(A)  65
Dimension L x B x H cm 103.2 x 38.3 x 87.2
Net Weight Outdoor  kg 76.5
Piping Connections:
Gas (Flare)  cm (inch) 1.588 (5/8”)
Liquid (Flare)  cm (inch) 0.952 (3/8”)
Drain  cm  3.2

Maximum Elevation Drain Pipe m 0.66
Maximum Refrigerant Pipe Length  m 50
Maximum Elevation Difference m 15
Maximum Chargeless Length m 5
Refrigerant Type  R-32
Refrigerant Charged Qty  g 1950
Interconnecting Cable  From ODU to IDU  Sq.mm NA
Power Cable  To IDU  Sq.mm 3C X 2.5
Power Cable  To ODU  Sq.mm 5C X 4.0

RS485 Cable  From ODU to IDU  Sq.mm 2C X 0.5
Ambient Temperature Operating Range  °C  up to 50°C
Standard Controller (Remote) LCD Wireless type
Rating Conditions:
Inside Air Temperature  Cooling 27°C DB / 19°C WB
Outside Air Temperature Cooling 35°C DB / 24°C WB

5 Years Warranty on Compressor
