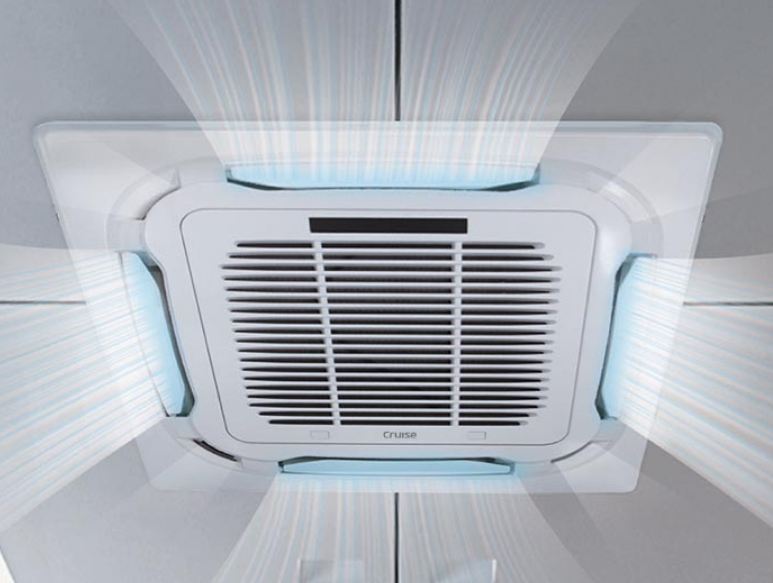

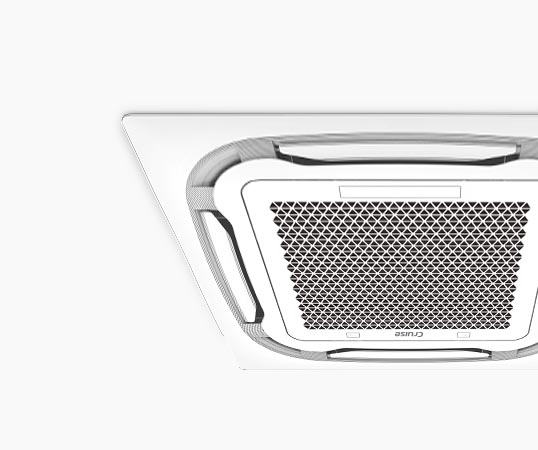

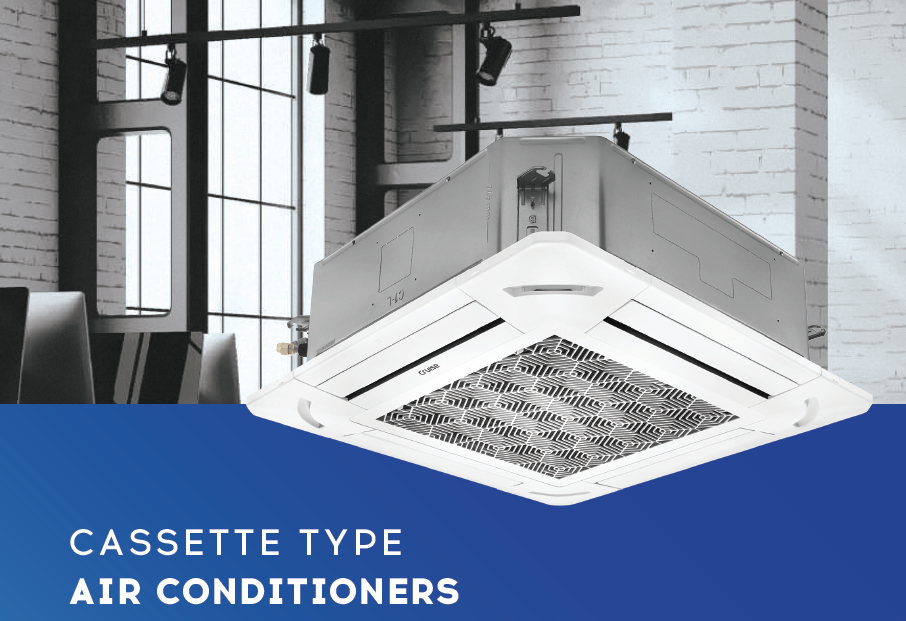

“Cruise Cassette Ac 2 ton” MODEL (SET) CCCVBJ-AS124VS4
Performance Parameters
Model Type Inverter
Tonnage Class Tr 2.0
BEE Star Rating 4
Cooling Capacity W 6200/3100
Power Consumption W 1745/ 615
Current Input A 8.20/ 5.00
ISEER 4.60
Indoor Unit
Power Supply/ Via V/Hz/Ph 230/50/1
Airflow Volume (H) m³h 1280
Motor Type BLDC
Noise Level (H/L) dbA 45/ 41
Unit Dimensions (WxDxH) mm 845x845x245
Panel Dimensions (WxDxH) mm 950x950x52
Unit Net/ Gross Weight kg 24.0/ 30.5
Panel Net/ Gross Weight kg 5.5/ 8.0
Outdoor Unit
Power Supply/ Via V/Hz/Ph 230/50/1
Fan Motor Type BLDC
Condensor Type-Rows nos. Copper / 2
Compressor Type/Gas Twin Rotary
Noise Level (H/L) dbA 58
Refrigerant Type/Charge kg R-32/ 0.90
Ambient Oper. Range ˚C Up to 52
Unit Dimensions (WxDxH) mm 781x281x555
Net/ Gross Weight kg 28/ 30
Piping Conn.: Liquid in 1/4″
Piping Conn.: Gas in 5/8″
Max Elevation Drain Pipe m 0.66
Max Refrigerant Pipe (L) m 30
Max Elevation Difference m 15
Premium Features
“Indoor Unit Display Type Digital
Airflow Control Type 8 Way Auto
Remote Control Wireless Backlit LED
Evaporator Protection Blue-tec
Condensor Protection Blue-tec
3 Phase Advantage
Express Cool 52°C Yes
Auto Smart Check Yes
HD Dust Filter” Yes
