O`General Cassette AC 2 TR Inverter 4 Star

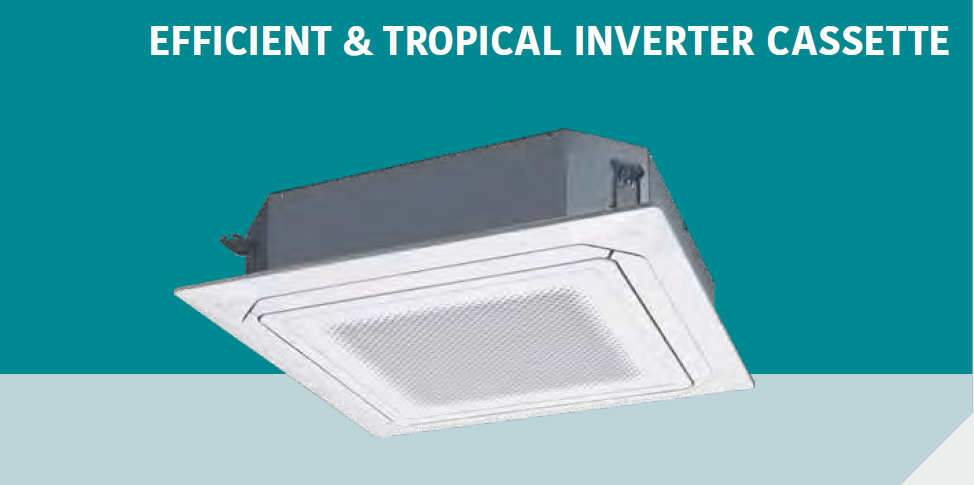

O General Inverter Cassette Air Conditioners 2 Ton 4 Star

IDU Model Number AUGG25CRTA-B

Odu Model Number AOGG25CBTA-B

BEE Star Rating – 4
Tonnage (Min~Max Cooling Capacity) TR 2.02(0.50~2.20)
Power Supply Ph-Hz-V 1φ-50-230
Running Current A 8.9

Rated Cooling at 100% Capacity (Min~Max) W 7,100(1750~7730)
Rated Cooling at 50% Capacity W 3,550
Power Consumption at 100% Capacity (Min~Max) W 2,020(200~2290)

Power Consumption at 50% Capacity W 575
EER at 100% Capacity W/W 3.51
EER at 50% Capacity W/W 6.17
Rated ISEER kWh/kWh 5.09

Electricity Consumption per Annum kWh 1078.94
Moisture Removal l/h 2.5
Indoor Fan Speed Control Levels – 4
Indoor Airflow Volume-High m3/h 1150

Indoor Unit Dimensions HxWxD mm 246x840x840
Indoor Unit Net Weight kg 24.0
Grille Dimensions HxWxD mm 53x950x950

Outdoor Unit Dimensions HxWxD mm 632x799x290
Outdoor Unit Net Weight kg 36.0
Indoor Noise Level-Quiet dB(A) 29

Connection Pipe (Gas / Liquid) mm 12.70 / 6.35
Pipe Length Min~Max (Precharged) m 5~30(20)
Max Height Difference m 25

Max Temperature °C 55°C
Operating Voltage Range V 198 ~ 264
Refrigerant Type Non-CFC R32

Compressor Type – Tropical Rotary
Evaporator & Condenser Coil Material – Copper
