The model falls in the “Ductable Split Units” range by Voltas, nominal capacity ~5.5 TR for the set model “ACADS05513” in the R410A refrigerant series. thesmarthvac.com +3 Voltas +3 Voltas +3 Indoor unit (IDU) power supply: 230 V / 1 Phase / 50 Hz. thesmarthvac.com +2 Voltas +2 Outdoor unit (ODU) power supply: 3 Phase – 415 V / 50 Hz (R, Y, B, N + Earth) in many cases. thesmarthvac.com +1 Compressor type: Hermetic Scroll. Voltas +1 Indoor unit airflow: for 5.5 TR air-cooled ductable split units (series) the spec sheet lists ~3740 CMH (cubic metres/hour). Voltas Refrigerant: For the series “ACADS05513” it corresponds to R410A.
The model falls in the “Ductable Split Units” range by Voltas, nominal capacity ~5.5 TR for the set model “ACADS05513” in the R410A refrigerant series. thesmarthvac.com +3 Voltas +3 Voltas +3 Indoor unit (IDU) power supply: 230 V / 1 Phase / 50 Hz. thesmarthvac.com +2 Voltas +2 Outdoor unit (ODU) power supply: 3 Phase – 415 V / 50 Hz (R, Y, B, N + Earth) in many cases. thesmarthvac.com +1 Compressor type: Hermetic Scroll. Voltas +1 Indoor unit airflow: for 5.5 TR air-cooled ductable split units (series) the spec sheet lists ~3740 CMH (cubic metres/hour). Voltas Refrigerant: For the series “ACADS05513” it corresponds to R410A.
, , , , , ,

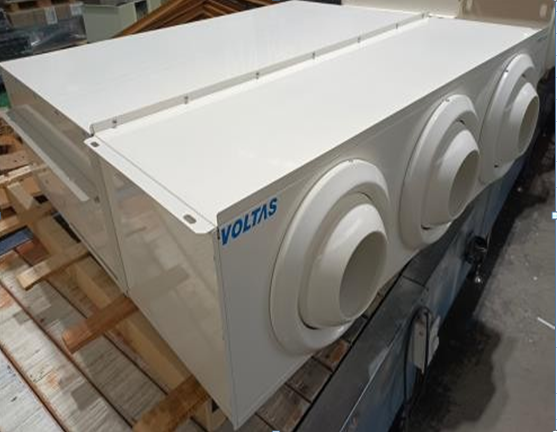

Voltas 8.5 TR Ductable AC With Jet Nozzle/Plenum Box ACADS08513JP

Rated 3.10 out of 5 based on 49 customer ratings
(52 customer reviews)

Original price was: ₹329,490.00.Current price is: ₹211,990.00.

This unit’s indoor section (the “evaporator + blower” unit) is placed in or above a ceiling/plenum space, with ducts distributing the cooled air to various parts of the room/zone.

The outdoor (condenser + compressor) section is located outside (roof, terrace, or external wall) in the usual manner for split ACs.

It’s suited for large volume spaces where you need good air distribution via ducts rather than individual wall-mounted splits.

You may see “jet nozzle/plenum box” accessories mentioned for the indoor unit: likely meaning that this indoor unit can be paired with a plenum box or jet-nozzle diffuser that helps distribute air widely (often used in large halls or spaces where you need good throw of air).

It’s meant for constant/long-duration use (commercial rather than typical home AC).

Categories: , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Voltas Ductable AC 8.5 TON With Jet Nozzle/Plenum Box

Unit
Set Model ACADS08513JP
Indoor Unit Model Number ACDEU85CZGIMJP
Outdoor Unit Model Number ACDCUA08513
Power Supply (to ODU) Ph-V-Hz 3Ph-415V-50Hz-4 Wire (R,Y,B,N)+ G(Earth)

Performance Unit Nominal Cooling Capacity KW 29.8

Compressor
Type Hermetic Scroll
Qty/ODU Nos 1
Lubricant POE

Indoor Fan Motor
Power Output W 930
Motor Speed (Low/Med/High) RPM 1130/1190/1250

Indoor Coil
Numbers of Row Nos 4
Fin Type/Material Bare Alluminium
Tube Type/Material Copper IGT

Blower Indoor Unit
Type of Blower Centrifugal DIDW, Forward Curved
No off Blower Nos 2

Indoor Unit Dimension
Unit Lenght mm 1508 Height mm 407 Depth mm 1303
Packaging Lenght mm 1774 Height mm 425 Depth mm 1353

Outdoor Fan
Diameter mm 660
No of Blades Nos 3
Material ABS Glass Filled Plastic

Outdoor Fan Motor
Power Output W 560
Nos of Motors/ODU Nos 1
Speed RPM 900

Outdoor Coil
Numbers of Row Nos 3
Fin Type/Material Aluminium/Hydrophillic Blue
Tube Type/Material Copper IGT

Expansion Device
Type TEV
Qty mm 1

Outdoor Unit Dimension
Unit Lenght mm 1200 Height mm 960 Depth mm 575
Packaging Lenght mm 1360 Height mm 1010 Depth mm 655

Refrigerant Type R410A

Refrigerant Piping
Liquid Line Size mm 15.8
Suction Line Size mm 28.5

Filter
Thickness mm 5
No of filter/Unit Nos 1
Material of Filter HDPE/Nylone Washable
Material of Frame MS Powder Coated

Controller
Type ( Mechanical/Remote/Electromechanical) Wired Remote
Remote ( LCD/Non LCD) LCD (Backlit)
On/Off Yes
Mode Cool Yes
Mode DRY Yes
Mode Fan Yes
Mode Auto Yes
