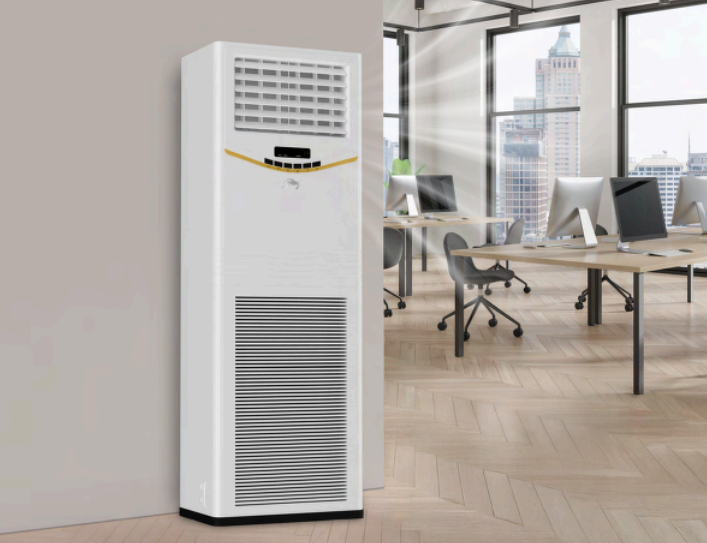

AC 2.0T 3S INV Floor Standing Tower AC
Model TIC 24MTC3 GZR
TIC 24MTC3 GZR IOT
RATED VOLTAGE / FREQUENCY / PHASE 230 V / 50 Hz / 1 PHASE
TONNAGE CLASSIFICATION 2.0 TR
MAX COOLING CAPACITY (RATED COOLING CAPACITY) 7455W (7100W)
POWER INPUT IN WATTS 2245
ISEER (STAR RATING) 4.10 (3 STAR)
ELECTRICITY CONSUMPTION ( 1600 HOURS ) UNITS PER YEAR 1340.89
RATED CURRENT (AMP) 10.25
AIR FLOW VOLUME (DRY CFM/DRY CMH) 853/1450
NOISE LEVEL INDOOR (HIGH/ MEDIUM / LOW) IN DB(A) 46/41/39
MODES COOL/AUTO/DRY/FAN/TURBO
TIMER ON / OFF YES
HORIZONTAL SWING (LEFT & RIGHT SWING MOVEMENT) AUTO
VERTICAL SWING (UP & DOWN SWING MOVEMENT) AUTO
AUTO RESTART WITH MEMORY FUNCTION YES
HYGIENE+ / BLOW (SELF CLEAN) YES
ANTI FREEZE YES
SELF DIAGNOSIS (ERROR CODES) YES
DISPLAY IN IDU HIDDEN DISPLAY
5 IN 1 CONVERTER YES
LOCK YES
CLOCK YES
AI-TECH YES
FILTER CONFIGURATION PURE AIR FILTER
EVAPORATOR FINS HYDROPHILIC BLUE FINS
CONDENSER FINS HYDROPHILIC BLUE FINS
EXPANSION DEVICE IN ODU CAPILLARY
FRONT PANEL COLOUR (STRIP) WHITE
NET IDU DIMENSION (W X H X D) CM 60.0 X 185.0 X 38.6
GROSS IDU DIMENSION (W X H X D) CM 70.3 X 194.2 X 49.0
INPUT POWER SUPPLY OUTDOOR UNIT
NET WEIGHT IDU (KG) 56
GROSS WEIGHT IDU (KG) 68
NET ODU DIMENSION ( W X H X D) CM 78.1 X 55.7 X 28.1
GROSS ODU DIMENSION ( W X H X D) CM 90.5 X 59.0 X 37.5
NOISE LEVEL OUTDOOR IN DB(A) 60
NET WEIGHT ODU (KG) 28
GROSS WEIGHT ODU (KG) 32
COMPRESSOR TYPE TWIN ROTARY INVERTER
COMPRESSOR WARRANTY 5 YEAR
ACOUSTIC JACKET ON COMPRESSOR YES
REFRIGERANT R32
MAX AMBIENT TEMP (COOLING)ºC 48
SUCTION TUBE SIZE OUTER DIAMETER INCHES (MM) 5/8″
LIQUID TUBE SIZE OUTER DIAMETER INCHES (MM) 1/4″
MAX PIPING CAPABILITY TOTAL (M) 25
MAX PIPING CAPABILITY VERTICAL (M) 15
REFRIGERANT ADDITIONAL CHARGE BEYOND 4M (G/M) 20
